CE approved 13.4L aluminum food grade co2 gas cylinder

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $102.50
  • 50 - 99 Pieces
    $80.00
  • >=100 Pieces
    $73.00
Lead Time:
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 100 Pieces)
color (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Pressure:
High
Place of Origin:
Liaoning, China
Model Number:
LW-203-13.4-15-H
Material:
Aluminium
Brand Name:
Alsafe
Use:
food grade co2
Product name:
Food grade co2 gas cylinder
Certificate of gas cylinder:
CE,TS
Standard for gas cylinder:
ISO7866 or 11640
Gas cylinder water volume:
13.4L co2 cylinder
Working pressure:
150bar
Outside diameter:
203mm
Overall length:
640mm
Weight of gas cylinder:
13.8kg
Wall thickness:
10.3mm
Working life:
15 years
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic net, carton and pallet
Port
Dalian, China
Lead Time :
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 30 To be negotiated
Video Description

Product Description

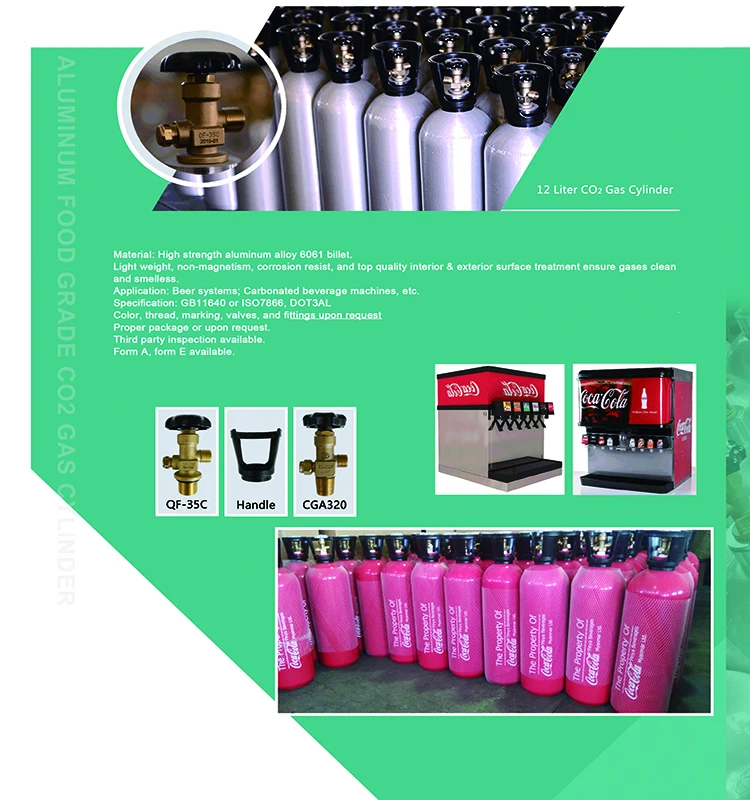

Co2 gas cylinder details



                                 Dedicate thread & stampling                                                                    Quality valve & handle



Co2 gas cylinder specification



Specification

Outside Diameter

Water Volume

Length

Weight

Wall Thickness

Working Pressure

LW-203-12.0-15-H

203mm

12.0L

587mm

12.8kg

10.3mm

15MPa

LW-203-13.4-15-H

203mm

13.4L

640mm

13.8kg

10.3mm

15MPa

LW-203-20.0-15-H

203mm

20.0L

873mm

17.0kg

10.3mm

15MPa



Note: The specifications of gas cylinders above are popularly used in the beverage industry. However, if you need other size or specifications, please visit Alsafe aluminum cylinders overall collection (volume limitation from 0.5L~50L) or contact us directly. We always offer friendly service and knowledgeable advice.

 Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| Co2 gas cylinder| beverage co2 cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder




Packaging & Shipping for Co2 gas cylinder





Quality & safety



1. Liaoning Alsafe Technology Co., Ltd. has esteablished the quality guarantee system according to the Requirements for Boiler and Pressure Vessel Manufacturing Licencsing of China and abtained the certificate issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C (AQSIQ), qualified to manufacture B1 and B3 grade pressure vessels.  gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder



2. Each new type of  gas cylinders before mass production has to pass type tests held in qualified laboratories approved by third party inspector (TUV, CSEI for example), including bend test, drop test, hydrostatic test, etc. according to relevant standards.  gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinde



3. Every batch of gas cylinders (200 pieces as one batch normally) are manufactured and tested under supervision of local special equipment inspection and research institute and then issued batch test report.

 gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder

4. Each finished gas cylinder before delivery to customers has to pass leakage test to ensure no leakage occurs.

 gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder| gas cylinder

5. Alsafe are honored to supply quality products to worldwide top brands and enterprises, and sets long term and stable cooperation due to quality products, friendly service and knowledgeable advice, which help us to gain good reputation among home and overseas customers.
